DESIGN AND TECHNOLOGY

Advertising Foil Slides

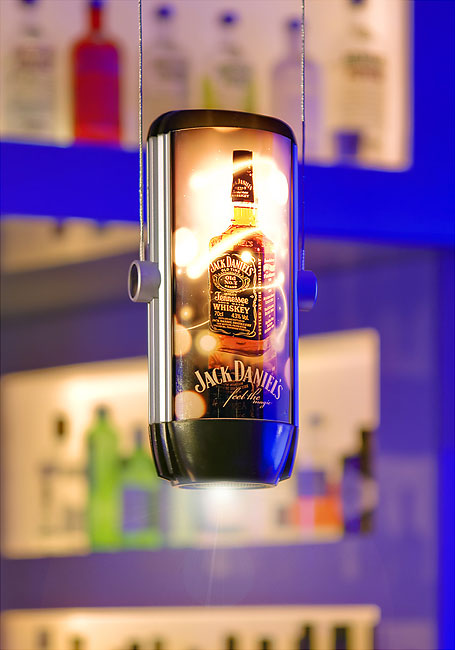

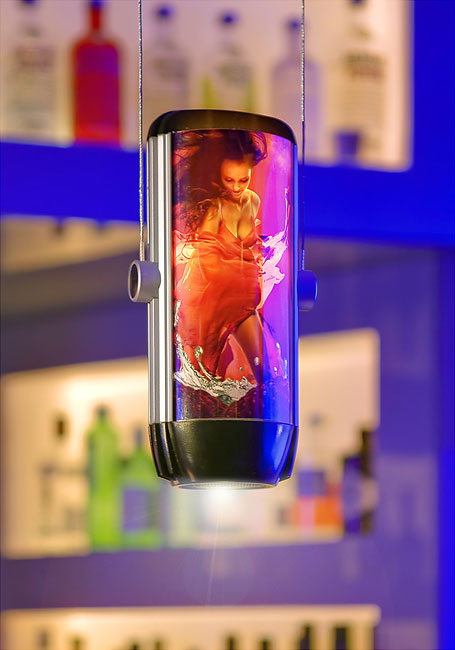

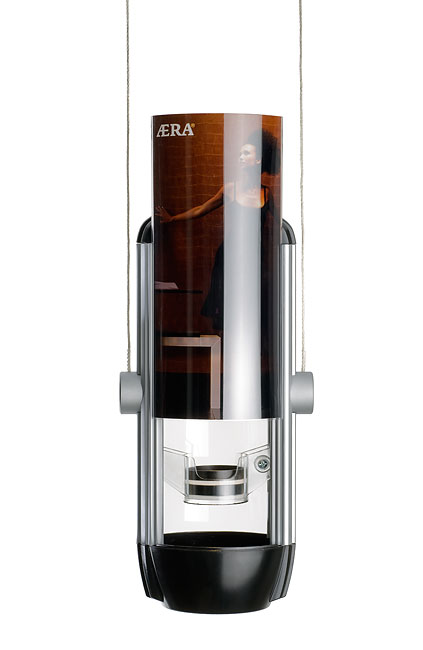

The two lampshades of BIL are equipped with pellucid foils, designed by your demand. With a size of 185 x 95 mm the foils are printable by a resolution of 200 dpi, in addition, they are back lit. By swapping the foil slides between the lampshades, the trade mark logos or individually created messages can simply be changed.

Ceiling Mounting

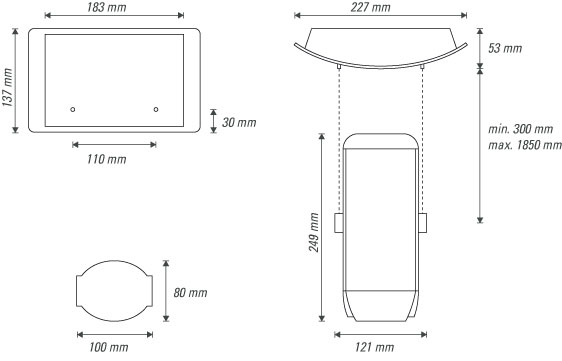

The transformer housing is mounted under the ceiling and provides a fastening for the two stainless steel ropes. The length of the ropes can be freely adjusted up to a maximum of 2 metres.

Lenses

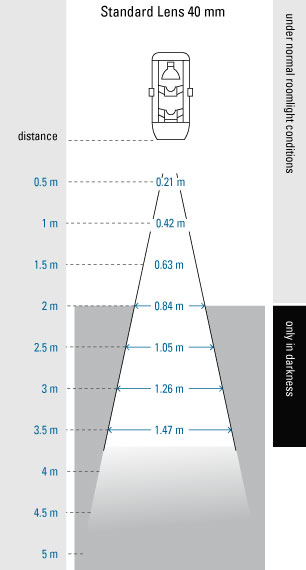

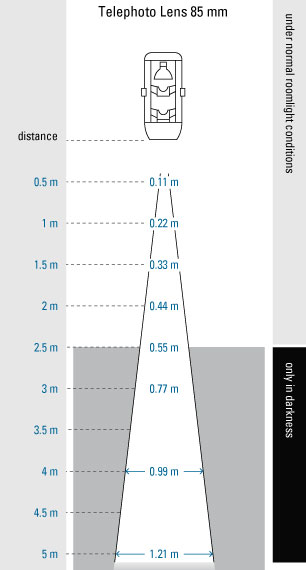

There are two lenses available, changeable without any tool: 40 mm standard and 85 mm telephoto. By using the telephoto lens, projection is achieved over a longer distance, as the light cone is more concentrated.

Deflection Mirror

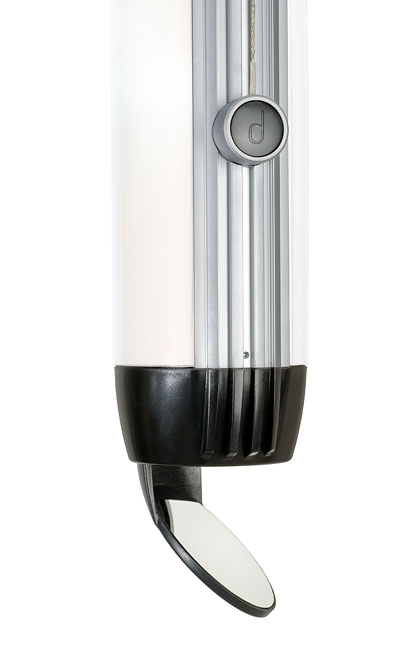

Specifically designed for BIL, the Mirror is put on the light discharge. Consequently it is possible to keep BIL in a vertical position and project the motif horizontal on the wall. The deflection mirror is rotatable over 360°.

SPECIFICATIONS

item:	BIL 230 V	BIL 115 V
field of application:	indoor	indoor
body:	aluminium, plastic	aluminium, plastic
colour:	black / silver	black / silver
input voltage:	230 V / 45-66 Hz	115 V / 45-66 Hz
lamp wattage:	50 W	50 W
power consumption:	55 VA	57 VA
lens:	standard, f = 40 mm	standard, f = 40 mm
light source:	50 W / 12 V halogen multimirror lamp	50 W / 12 V halogen multimirror lamp
recommended projection distance:	0.5 m - 2 m	0.5 m - 2 m
average lifetime of the lamp:	5,000 operating hours	5,000 operating hours
colour temperature:	3,200° Kelvin	3,200° Kelvin
gobo size / image size:	37.5 mm / 20 mm	37.5 mm / 20 mm
advertising foil slides:	185 x 95 mm, 200 dpi	185 x 95 mm, 200 dpi
weight:	940 g	990 g
item number:	09950020	09950120

COMPONENTS

Standard series with 50 W / 12 V multimirror lamp, 40 mm standard lens and ceiling mount with integrated switching power supply. Required accessories: glass gobo with individually designed motif.
