The direction of projection can be adjusted to the ambience conditions using special deflection mirrors. Graphic projectors can be mounted in a suspended ceiling to become almost invisible. The light beam is directed through the aperture of an installation ring.
 |
 |
|
Ceiling Installation Ring |
Installation Ring with Deflection Mirror |
|
| short description: | To install projection systems in a suspended ceiling. The image is projected on the floor. | To install projection systems in a suspended ceiling. The image is deflected onto the wall by a freely adjustable mirror. |
| compatible projectors: | indoor projection systems | indoor projection systems |
| compatible lenses: | all | all |
| Ø mounting countersink: | 21.0 cm | 16.5 cm |
| colour: | white / chrome | white |
| weight: | 450 g | 650 g |
| item number: | 03001110 | 01012410 |
| dimensions (WxHxD): | 250 x 80 x 25 mm | 185 x 300 x 185 mm |
 |
 |
 |
|
Deflection Mirror 1 |
Deflection Mirror 2 |
Deflection Mirror 3 |
|
| short description: |
Is mounted on the lens to re-direct the projection beam. The angle can be freely adjusted. |
Is mounted on the lens to re-direct the projection beam. The angle can be freely adjusted. |
Is mounted on the lens to re-direct the projection beam. The angle can be freely adjusted. |
| compatible projectors: | all | all | all |
| compatible lenses: | 63 mm, 85 mm, 150 mm |
70-120 mm (Zoom), 241 mm |
45 mm |
| colour: | silver-grey |
silver-grey |
silver-grey |
|
weight: |
70 g | 110 g | 150 g |
|
item number: |
01003330 | 01003430 | 01004130 |
|
dimensions (WxHxD): |
65 x 55 x 85 mm | 95 x 100 x 115 mm | 103 x 106 x 218 mm |

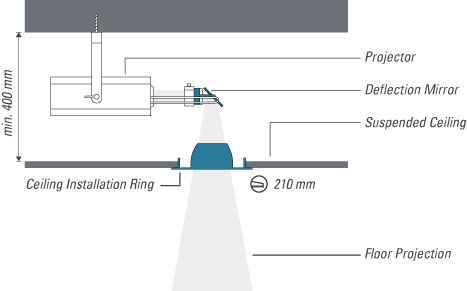

The projector is installed horizontally into the suspended ceiling. With a deflection mirror and a ceiling installation ring, the motif is projected onto the floor.

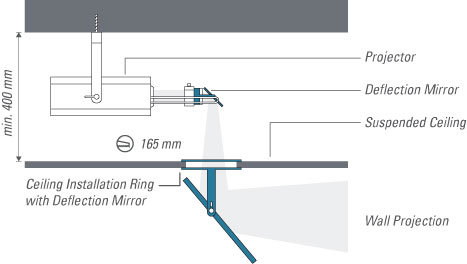

The projector is installed horizontally into the suspended ceiling. With one ceiling installation ring and two deflection mirrors, the motif is projected onto the wall.
