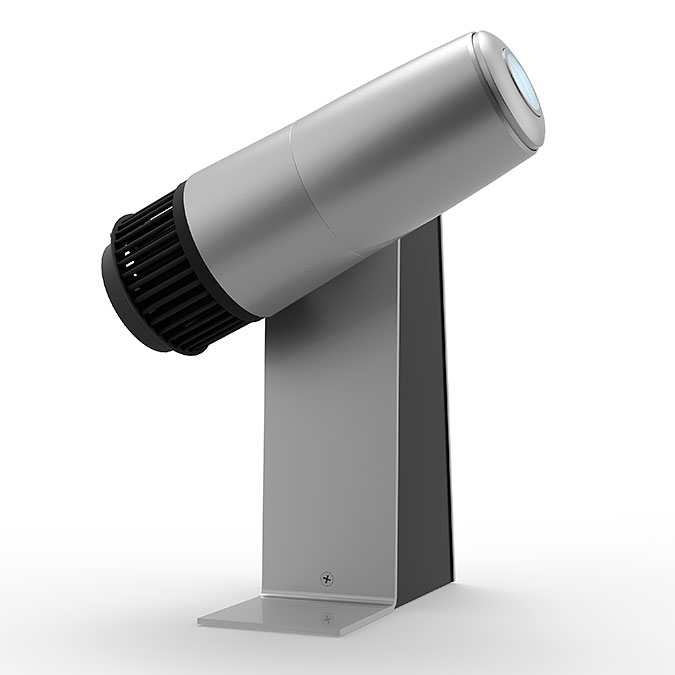

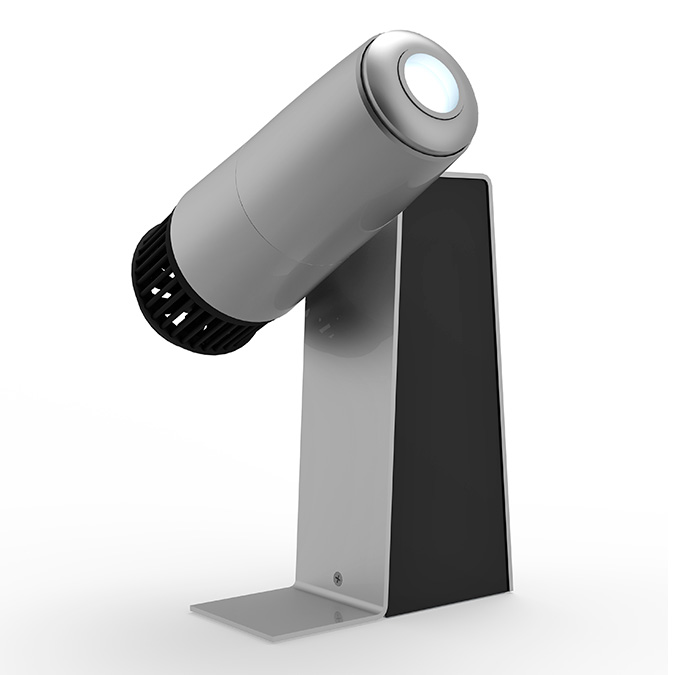

Powerful LED projector for flexible installation
In spite of its compact size the projector is equipped with a 40W high-power LED and features a superior brightness. The projected image can be changed without any tool. For focussing the lens is rotated.
|
|
SPECIFICATIONS |
| item: | PHOS 40 |
| body: | aluminium |
| available colours: | silver, black, white |
| weight: | 3,1 kg |
| on / off switch: | on the back side of the device foot |
| environmental conditions: | for indoor use only |
| cooling: | active ventilation |
| light source: | 40 W high-power LED |

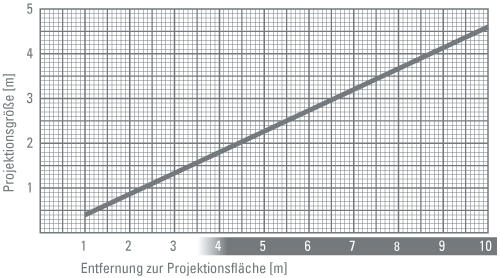

| recommended projection distance in normal room light: | 3.5 m |
| recommended projection distance in darkness: | 8 m |
| average lifetime of the LED: | 50,000 operating hours |
| colour temperature: | 6,500 - 8,000 °Kelvin |
| luminous flux of the LED: | 2,400 Lumen |
| gobo size / image size: | 50 mm / 40 mm |
| voltage: | 90 - 264 V AC / 47 - 63 Hz |
| active power (power consumption): | 55 W |
| apparent power: | 100 VA |
| efficiency: | 0.55 cos. Phi |
| electrical protection: | protection class I |
| item number: |
20002130 (silver) 20002120 (black) 20002110 (white) |
Standard series with high-power LED, 85 mm standard lens, power cable with plug. The machine is ready to plug in and run. Required accessories: glass gobo with individually designed motif.
PHOS 40 Specification Sheet (PDF | 251 KB)
Broschüre PHOS LED-Projektoren (PDF | 933 KB)
