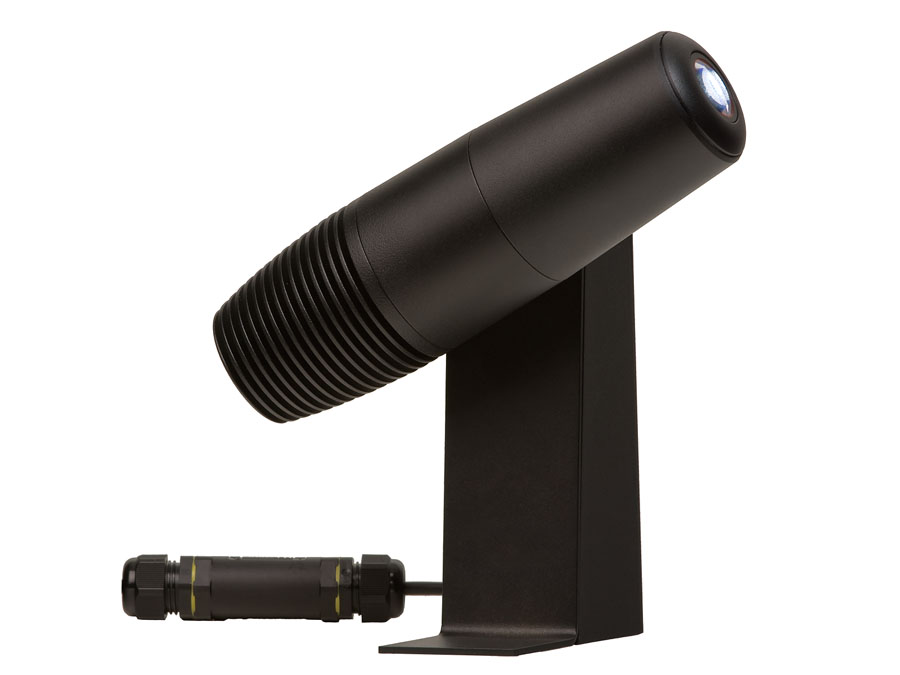

Outdoor Specialist
The dust and water resistant appliance is intended for indoor as well as outdoor use. The projection motif can be changed without any tool and to bring the motif into focus the lens ring is rotated.
|
|
SPECIFICATIONS |
| item: | PHOS 20 outdoor |
| body: | aluminium |
| available colours: | silver, black, white |
| weight: | 2.8 kg |
| on / off switch: | on the back side of the device foot |
| environmental conditions: | outdoor use |
| light source: | 20 W High-Power LED |
| recommended projection distance in normal room light: | 3 m |
| recommended projection distance in darkness: | 8 m |
| average lifetime of the LED: | 65,000 operating hours |
| colour temperature: | 6,500 - 8,000 °Kelvin |
| luminous flux of the LED: | 1,700 Lumen |
| gobo size / image size: | 50 mm / 32 mm |
| voltage: | 90 - 264 V AC / 47 - 63 Hz |
| active power (power consumption): | 26 W |
| apparent power: | 55 VA |
| efficiency: | 0.48 cos. Phi |
| electrical protection: | protection class II |
| ingress protection rating: | IP 64 |
| item number: | 20000720 |
Standard series with high power LED, 85 mm standard lens, mounting plate for standing or fixing to walls or ceilings, power cable with protected connection tube. Required accessories: glass gobo with individually designed motif.
PHOS 20 outdoor Specification Sheet (PDF | 125 KB)
PHOS 20 outdoor Instruction Manual (PDF | 837 KB)
Brochure PHOS LED Projectors (PDF | 933 KB)
