Functional Design
The LED Projector is especially qualified for the lighting of food, for use in museums, wellness and therapy areas where a noiseless operation with low heat generation is essential. The projection motif can be changed without any tool and to bring the motif into focus the lens ring is rotated.
|
|
SPECIFICATIONS |
| item: | PHOS 20 |
| body: | aluminium |
| available colours: | silver, black, white |
| weight: | 2.8 kg |
| on / off switch: | on the back side of the device foot |
| environmental conditions: | for indoor use only |
| light source: | 20 W High-Power LED |

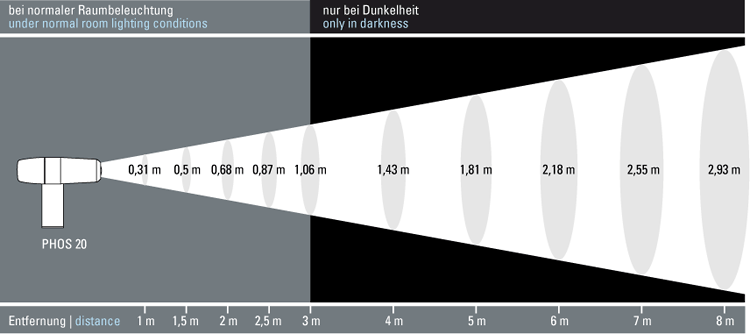

| recommended projection distance in normal room light: | 3 m |
| recommended projection distance in darkness: | 8 m |
| average lifetime of the LED: | 65,000 operating hours |
| colour temperature: | 6,500 - 8,000 °Kelvin |
| luminous flux of the LED: | 1,700 Lumen |
| gobo size / image size: | 50 mm / 32 mm |
| voltage: | 90 - 264 V AC / 47 - 63 Hz |
| active power (power consumption): | 26 W |
| apparent power: | 55 VA |
| efficiency: | 0.48 cos. Phi |
| electrical protection: | protection class I |
| colour | item no.: |
 |
 |
 |
|
| silver | 20000130 | black | 20000120 | white | 20000110 |
Standard series with high power LED, 85 mm standard lens, mounting plate for standing or fixing to walls or ceilings, power cable with plug. The machine is ready to plug in and run. Required accessories: glass gobo with individually designed motif.
PHOS 20 Specification Sheet (PDF | 129 KB)
PHOS 20 Instruction Manual (PDF | 828 KB)
Brochure PHOS LED Projectors (PDF | 933 KB)
