Functional Design for Ceilings
|
|
SPECIFICATIONS |
| item: | PHOS 20 downlight |
| body: | aluminium |
| colours: | silver, white |
| weight: | 3.4 kg |
| on / off switch: | - |
| environmental conditions: | for indoor use only |
| pivot range: | ca. 15°, 2 axis |
| light source: | 20 W high power LED |

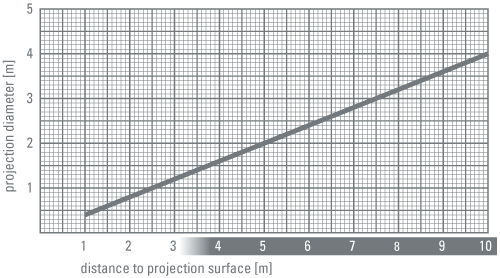

| recommended projection distance in normal room light: | 3 m |
| recommended projection distance in darkness: | 6 m |
| average lifetime of the LED: | 65,000 operating hours |
| colour temperature: | 6,500 - 8,000 °Kelvin |
| luminous flux of the LED: | 1,700 Lumen |
| gobo size / image size: | 50 mm / 35 mm |
| voltage: | 90 - 264 V AC / 47 - 63 Hz |
| active power (power consumption): | 26 W |
| apparent power: | 55 VA |
| efficiency: | 0,48 cos. Phi |
| electrical protection: | protection class I |
| order number | colour: |
20001630 (silver) 20001610 (white) |
Standard series with high power LED and 85 mm standard lens. The machine is ready to plug in and run. Required accessories: glass gobo with individually designed motif.
PHOS 20 downlight Specifications (PDF | 140 KB)
Brochure PHOS LED projectors (PDF | 933 KB)
