PROJECTION EFFECTS




PROJECTION EFFECTS

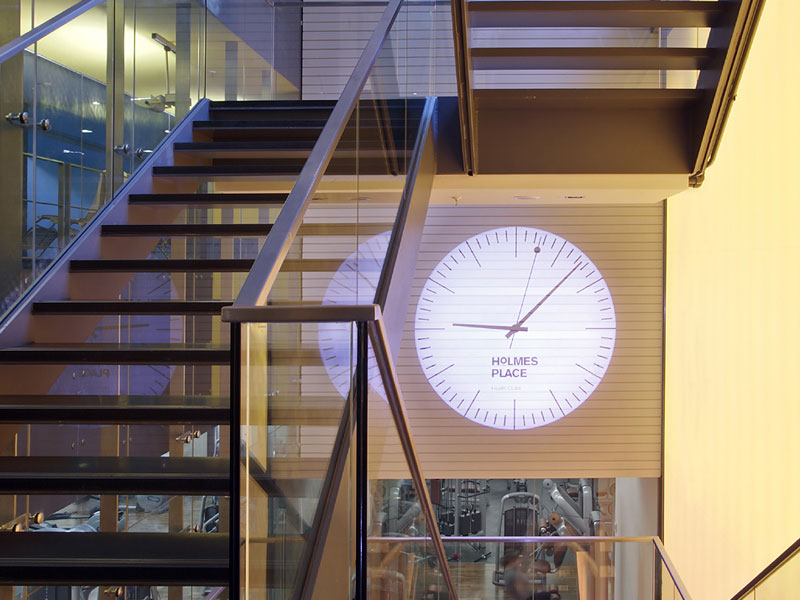

Projections which are moved gain greater attention when presenting brands and products. With the specific compatible effects from Derksen, you let your motif rotate, circle, sway or slip away. You want to show your logo on a clock face of a huge projection clock? That is possible with the individually manufactured accessories of Derksen!



Moving motif effects can project realistic clouds, water, fire or snow and stage adventure worlds that put a spell on the viewer.  The spectrum of effects is enormous and each appliance is exactly compatible for permanent use in Derksen projectors.









GOBO MAGAZINE

By inserting the magazine into the optical path of the projector, the motifs change automatically. Magazines for three, five or six glass gobos are obtainable. The remaining length of the projected motif can be set on the appliance or also be controlled by the DMX 512. The optionally available shutter allows easy transitions between motifs.



item:

3-Gobo Magazine

5-Gobo Magazine

6-Gobo Magazine

input voltage:

12 V

12 V

12 V

compatible projectors:

GL 100 HAL,
GL 150 economy,
GL 200
GL L60 LED

GL 575,
GL 700 EL,
GL 1200 EL,
GL 575 A compact,
GL 700 A compact,
GL 1200 A compact

GL 150 economy,
GL 200

compatible lenses:

all

all

all

gobo size / image size:

50 mm / 37 mm

105 mm / 68 mm

70 mm / 37 mm

resting time:

3 s. - 3 min.

3 s. - 3 min.

3 s. - 3 min.

item no.:

01004200

01002030

01002130











CIRCULAR MOTION MIRROR

An electronically controlled mirror moves the motif on a circular path. The radius and the turning direction can be individually adjusted to the spatial situation, the velocity is continuously variable. For the viewer, the motif remains at the same angle, so the texts and graphics do not appear upside down.



item:

Circular Motion Mirror 1

Circular Motion Mirror 2

input voltage:

12 V

12 V

compatible projectors:

all

all

compatible lenses:

Wide Angle 63 mm
Standard 85 mm
Tele 150 mm

Zoom 70 - 120 mm
Tele 241 mm

gobo size / image size:

all

all

speed:

adjustable

adjustable

item no.:

01000030

01000130











PIVOT MIRROR

The motif is moved to and from on a straight line by an electronically controlled mirror. Any moving direction is possible: from left to right, up and down or in diagonals. The pivot area and the velocity can be adjusted.



item:

Pivot Mirror

input voltage:

12 V

compatible projectors:

GL 100 HAL
GL 150 economy
GL 200
GL 575
GL 700 EL
GL 1200 EL
GL L60 LED

compatible lenses:

Wide Angle 63 mm
Standard 85 mm
Tele 150 mm

gobo size / image size:

all

speed:

adjustable

item no:

01000230

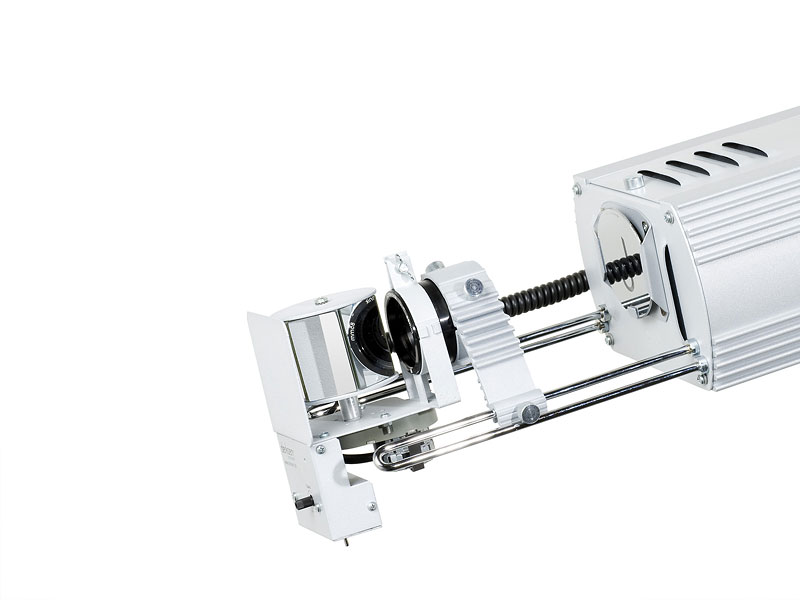

RUNNING LIGHT EFFECT

The projected image moves on a straight line in a single direction. Speed and direction can be adjusted.



item:

Running Light Effect

input voltage:

12 V

compatible projectors:

GL 100 HAL
GL 150 economy
GL 200
GL 575
GL 700 EL
GL 1200 EL
GL L60 LED

compatible lenses:

Wide Angle 63 mm
Standard 85 mm
Tele 150 mm

gobo size / image size:

all

speed:

adjustable

item no.:

01000430

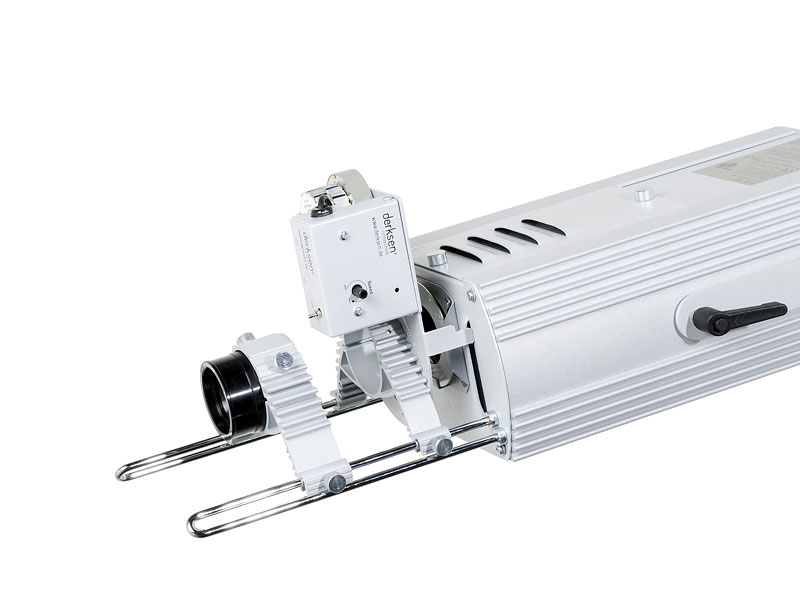

ROTOR

The projected image rotates around its centre. Direction of rotation and speed can be adjusted. Gobos must be mounted in a Gobo-Cassette.



item:

rotor drive 70 mm

rotor drive 105 mm

 gobo-cassette

input voltage:

12 V

12 V

–

compatible projectors:

GL 100 HAL
GL 150 economy
GL 200

GL 575
GL 700 EL
GL 1200 EL
GL 575 A compact
GL 700 A compact
GL 1200 A compact

all

compatible lenses:

all

all

all

gobo size / image size:

70 mm / 37 mm

70 mm / 60 mm

70 mm / 37 - 60 mm

speed:

adjustable

adjustable

–

item no.:

01000630

01000730

01010320

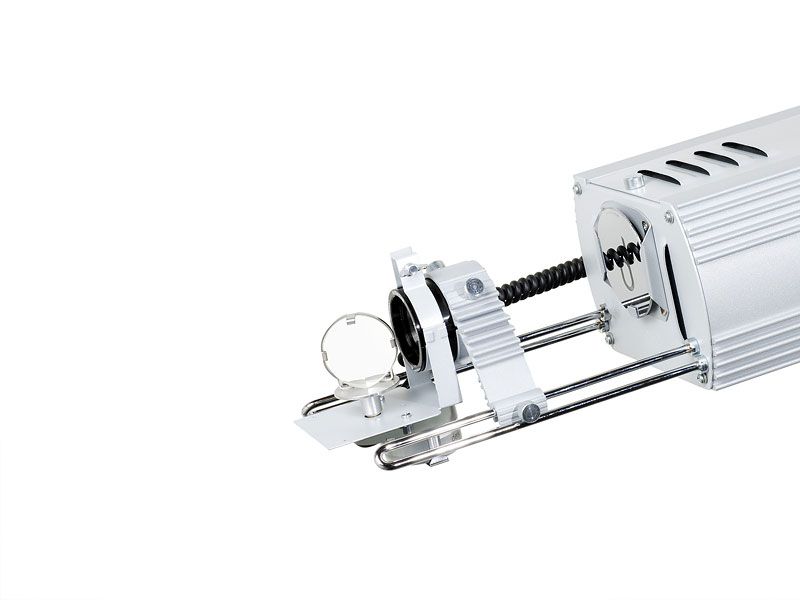

2-FOLD PRISM

The 2-fold prism produces 2 additional images that separate and then merge again into one.



item:

2-fold Prism

input voltage:

12 V

compatible projectors:

all

compatible lenses:

Wide Angle 63 mm
Standard 85 mm
Tele 150 mm

gobo size / image size:

all

speed:

2 rpm, counter clockwise

item no.:

01001030

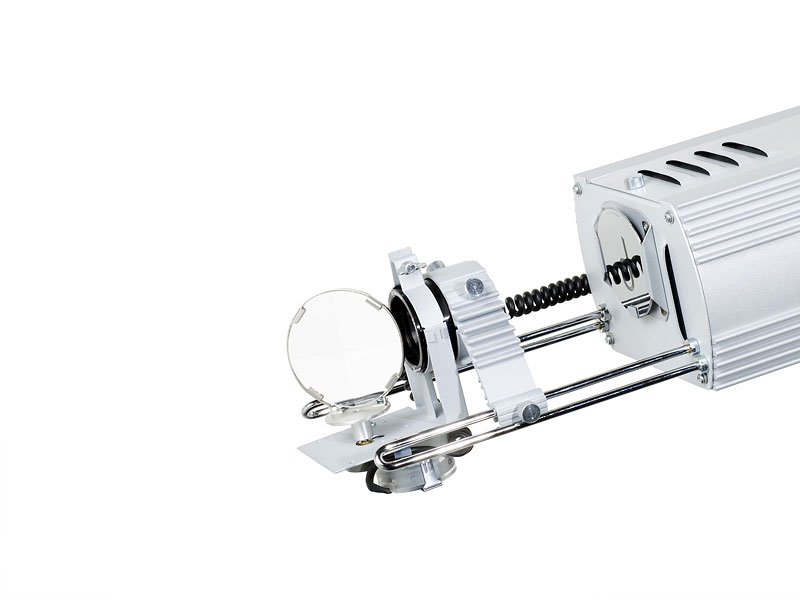

4-FOLD PRISM

The 4-fold prism produces 4 additional images that separate and then merge again into one.



item:

4-fold prism

input voltage:

12 V

compatible projectors:

all

compatible lenses:

Wide Angle 63 mm
Standard 85 mm
Tele 150 mm

gobo size / image size:

all

speed:

2 rpm, counter clockwise

item no.:

01015930

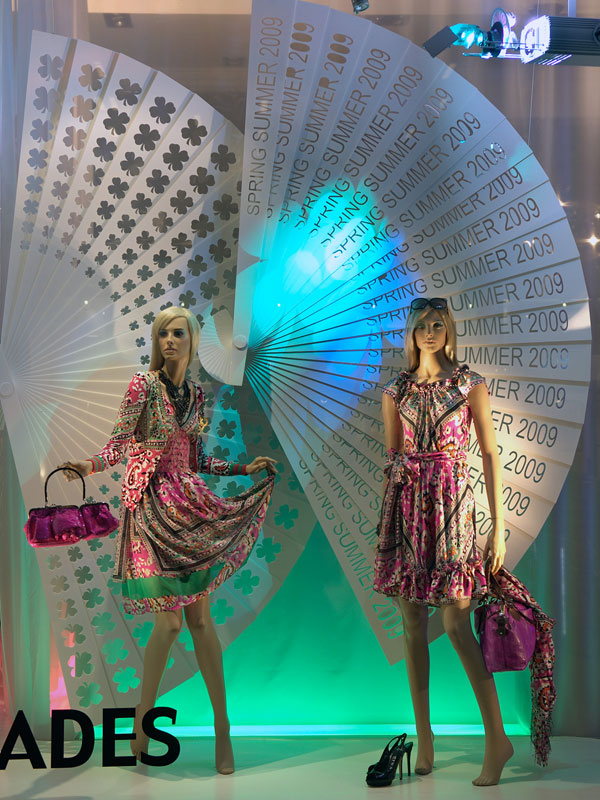

COLOUR WHEEL

The image is projected in continuously changing colours. Permanent dichroitic colour filters are used.



item:

Colour Wheel Dichro

input voltage:

12 V

compatible projectors:

all

compatible lenses:

all

gobo size / image size:

all

speed:

2 rpm, clockwise

item no.:

01001330

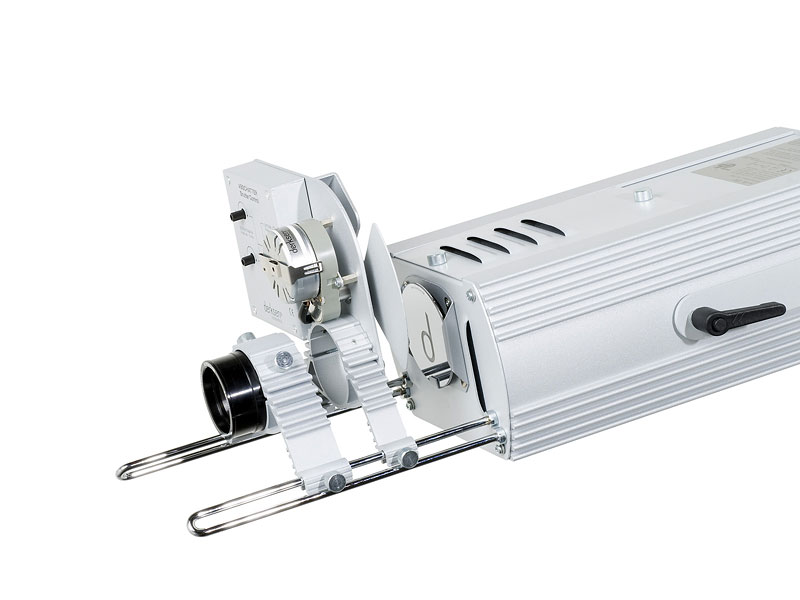

SHUTTER

The projected image continuously fades in and out. Display time and fading time can be adjusted.



item:

Shutter Standard

Shutter Synchro

input voltage:

12 V

12 V

compatible projectors:

all

must be used with a Gobo Magazine

compatible lenses:

all

all

gobo size / image size:

all

all

resting time:

adjustable, 1 sec. - 1 min.

synchronized with the Gobo Magazine

item no.:

01002230

01002330











FIRE EFFECT

Creates a realistic image of red and orange flames, including glass gobo "Flames".



item:

Fire Effect

input voltage:

12 V

compatible projectors:

GL 100 HAL
GL 150 economy
GL 200
GL L60 LED

compatible lenses:

all

speed:

20 rpm, clockwise

item no.:

01002530

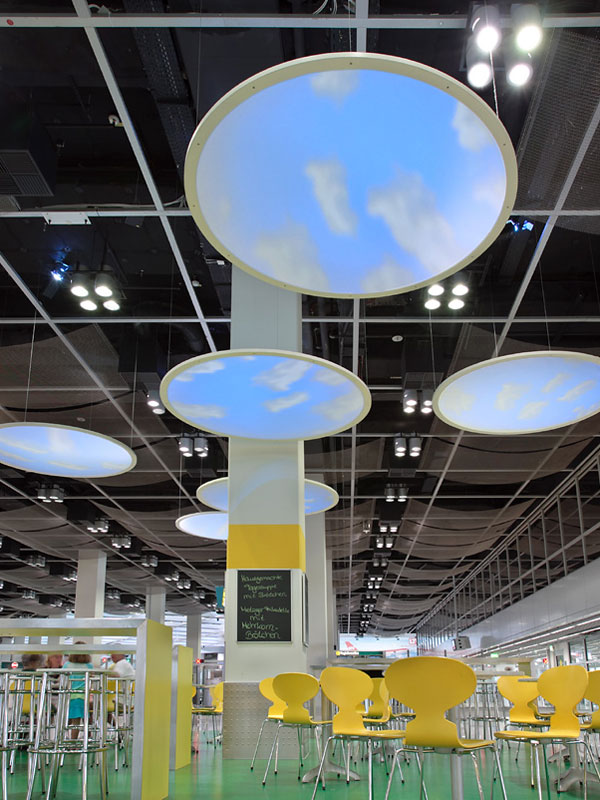

CLOUD EFFECT

Creates a realistic image of white clouds moving against a blue sky. Cloud Effect Film is non-permanent.



item:

Cloud Effect Film

Cloud Effect Dichro

input voltage:

12 V

12 V

compatible projectors:

GL 100 HAL
GL 150 economy
GL L60 LED

all

compatible lenses:

all

all

speed:

adjustable

adjustable

item no.:

01002730

01023430

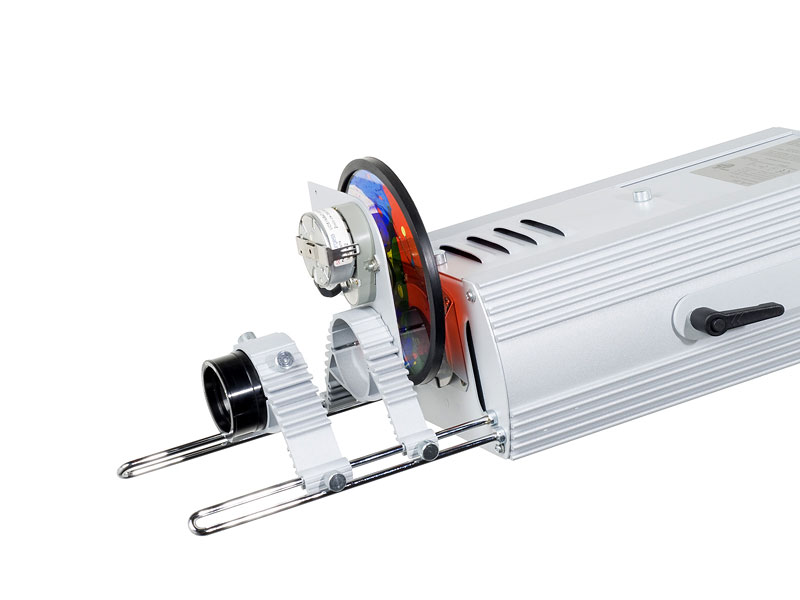

OIL EFFECT

Projects coloured bubbles that mingle by the rotation of the disk. The lifetime of this effect is limited.

item:

Oil Effect

input voltage:

12 V

compatible projectors:

GL 100 HAL
GL 150 economy
GL 200

compatible lenses:

all

speed:

0.5 rpm, clockwise

item no.:

01002830

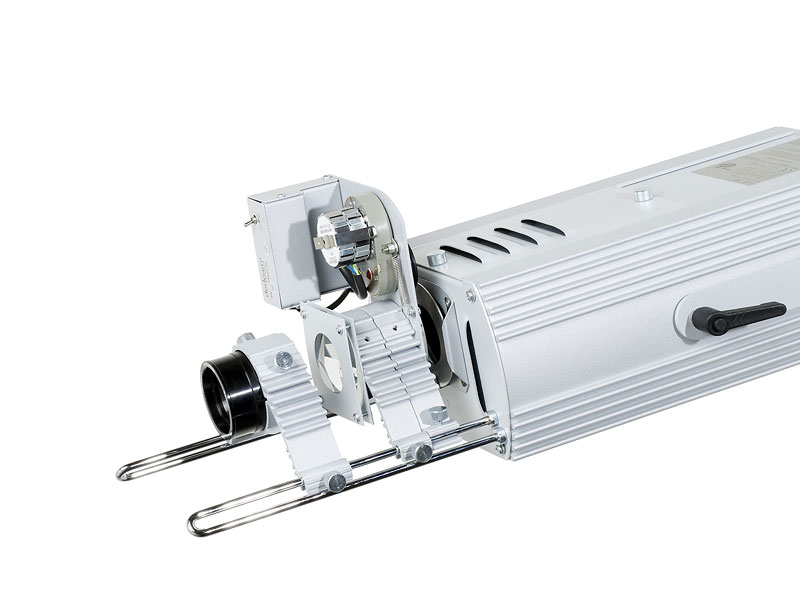

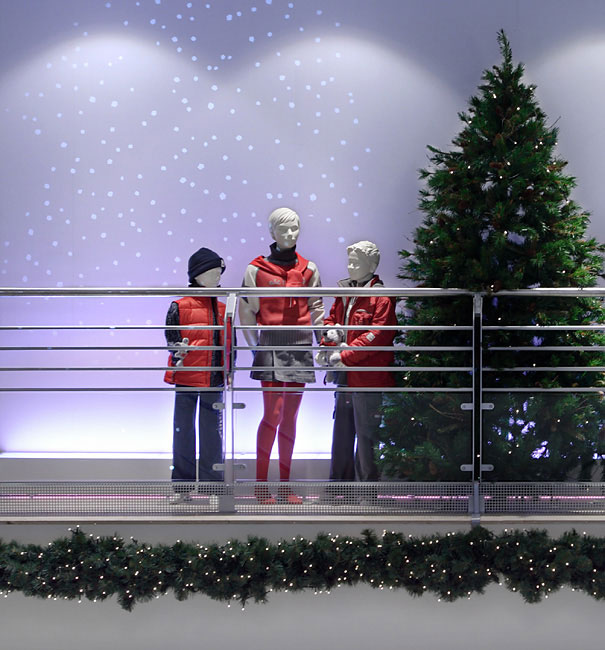

SNOW EFFECT

For a winter-like ambience at Christmas time, the effect of snow cannot be missed. It projects snow flakes that seem to fall three-dimensional on the set.



item:

Snow Effect 70 mm

Snow Effect 105 mm

input voltage:

12 V

 12 V

compatible projectors:

GL 100 HAL
GL 150 economy
GL 200
GL L60 LED

GL 575
GL 700 EL
GL 1200 EL
GL 575 A compact
GL 700 A compact
GL 1200 A compact

compatible lenses:

all

all

speed:

adjustable

adjustable

item no.:

01002930

01004030

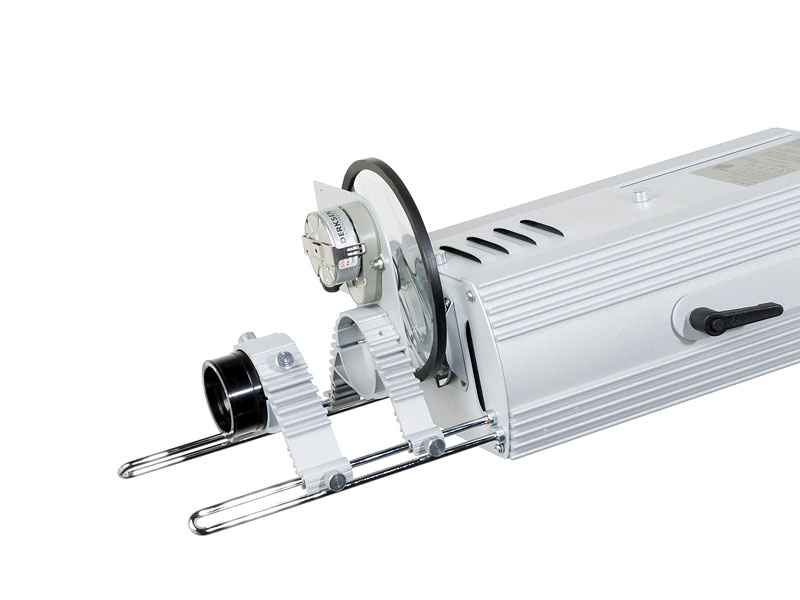

WIND EFFECT

The projected image is moved in waves, like a flag that is floating in the wind.



item:

Wind Effect

input voltage:

12 V

compatible projectors:

GL 100 HAL
GL 150 economy
GL 200
GL L60 LED

compatible lenses:

all
gobo size / image size:

70 mm / 37 mm

speed:

2 rpm, clockwise

item no.:



01002430

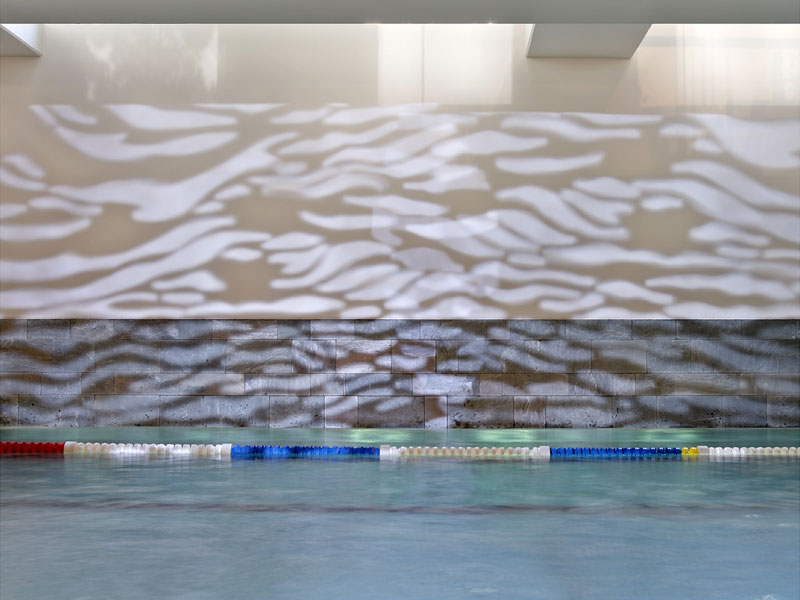

WATER EFFECT

Creates the illusion of realistic flowing water, including glass gobo "Waves" and blue colour filter.



item:

Water Effect 70 mm

 Water Effect 105 mm

input voltage:

12 V

12 V

compatible projectors:

GL 100 HAL
GL 150 economy
GL 200
GL L60 LED

GL 575
GL 700 EL
GL 1200 EL
GL 575 A compact
GL 700 A compact
GL 1200 A compact

compatible lenses:

all

all
gobo size / image size:

70 mm / 37 mm

105 mm / 68 mm

speed:

adjustable

adjustable

item no.:



01002630

 01022630
