Functional Design for Lighting Tracks

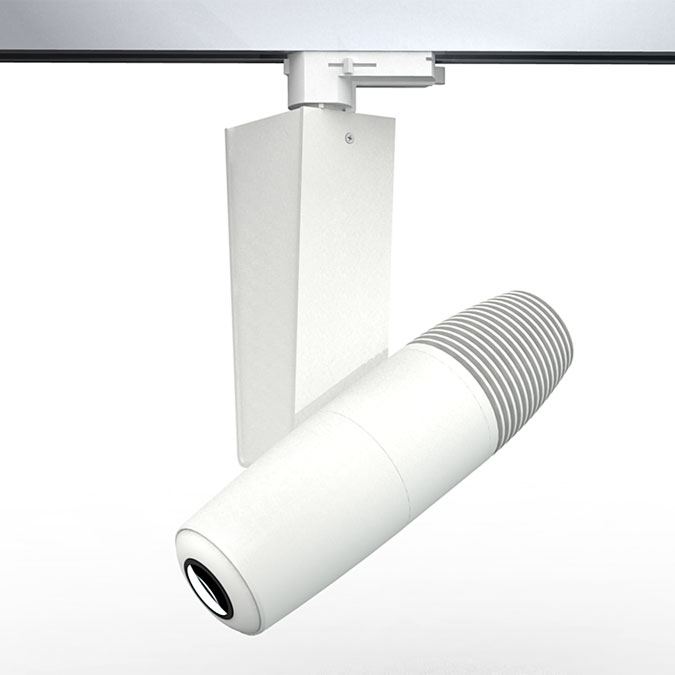

High brightness projector for large images. For mounting on 3-phase lighting tracks. The projection template (gobo) can be changed without any tool. The image is focussed by turning the lens.
|
|
SPECIFICATIONS |
| item: | PHOS 20 LT |
| body: | Aluminium |
| available colours: | silver, black, white |
| weight: | 2.8 kg |
| on / off switch: | - |
| environmental conditions: | for indoor use only |
| light source: | 20 W High-Power LED |
| recommended projection distance in normal roomlight: | 3 m |
| recommended projection distance in darkness: | 8 m |
| average lifetime of the LED: | 65,000 operating hours |
| colour temperature: | 6,500 - 8,000 °Kelvin |
| luminous flux of the LED: | 1,700 Lumen |
| gobo size / image size: | 50 mm / 32 mm |
| voltage: | 90 - 264 V AC / 47 - 63 Hz |
| active power (power consumption): | 26 W |
| apparent power: | 55 VA |
| efficiency: | 0.48 cos. Phi |
| electrical protection: | protection class I |
| item number: |
20001430 (silver) 20001420 (black) 20001410 (white) |
Standard series with high power LED, 85 mm standard lens, adapter to mount the projector on a 3-phase lighting track. The machine is ready to run. Required accessories: glass gobo with individually designed motif.
PHOS 20 LT Specification Sheet (PDF | 125 KB)
PHOS 20 LT Instruction Manual (PDF | 860 KB)
Brochure PHOS LED Projectors (PDF | 933 KB)
